GEAR HOBBING MACHINES
Compact, fast and flexible
Gear hobbing machines from MHD Werkzeugmaschinen are designed for high-speed machining of cylindrical gears in large quantities, often in the workpiece range of up to 350 mm in diameter. The series is established on the global market due to the combination of compact design and robust drives. All gear hobbing machines in this series have a direct drive via torque motor for the workpiece table and a direct drive for the tool spindle, thus enabling precise and efficient machining of spur and helical gears.
The machines’ main assemblies are made of grey cast iron featuring outstanding cushioning characteristics, ideally suited for absorbing any process-induced vibrations.

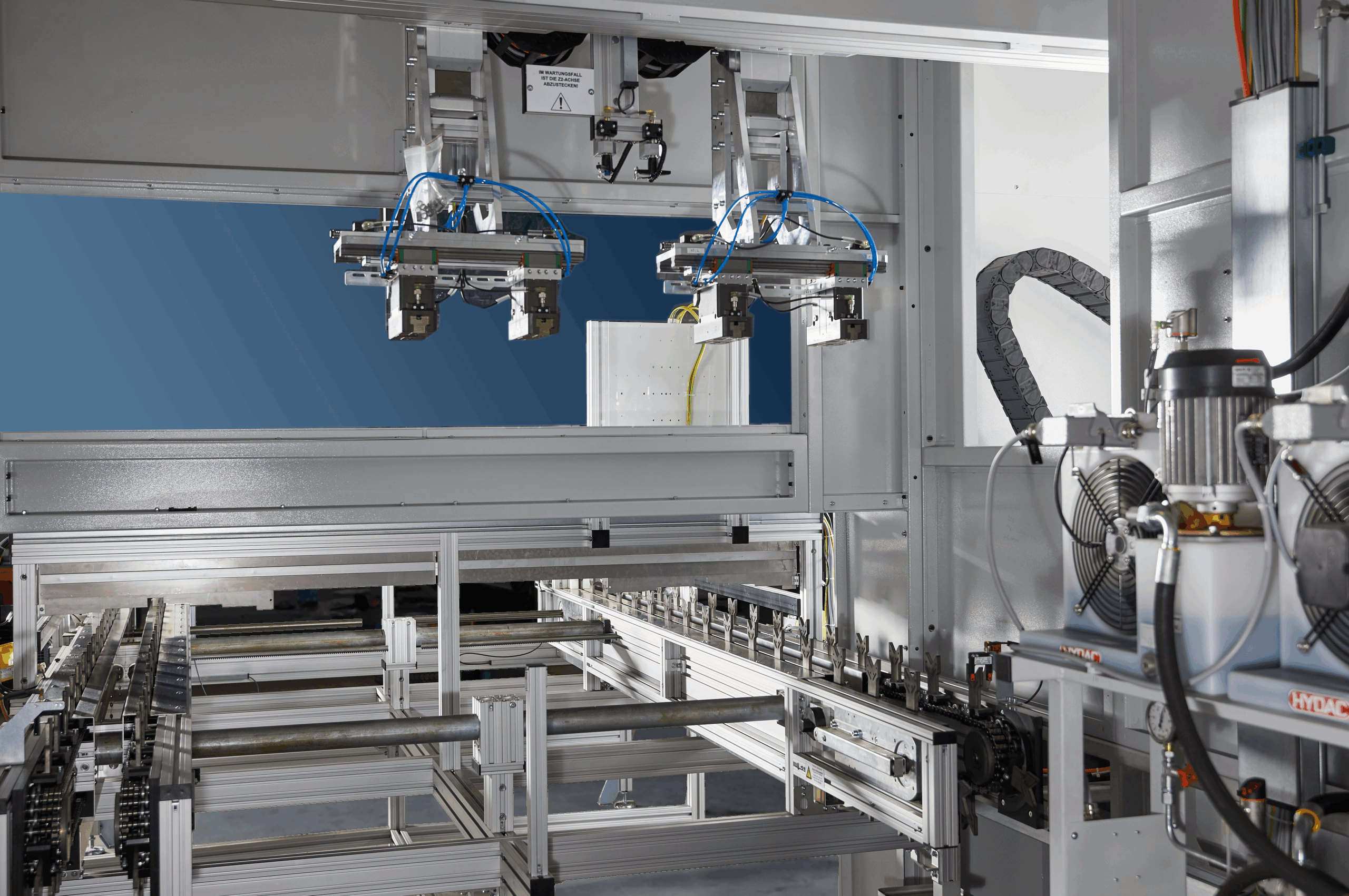

The machines are equipped with cutting-edge Sinumerik 840D sl control technology with digital drives. Process monitoring and data export according to Industry 4.0 standards are warranted. The machines are capable of being automated using ring loaders or gantry loaders.
Our intuitive user interface with input masks allows operators of all machine generations to learn how to operate MHD gear hobbing machines within a short time.
Overview:
- Robust direct drive for workpiece spindle
- Robust direct drive for hobbing spindle
- Torsion-resistant design – main assemblies made of grey cast iron
- High rapid traverse speeds
- High machining accuracies
- Convenient, intuitive user interface
FMZ 200

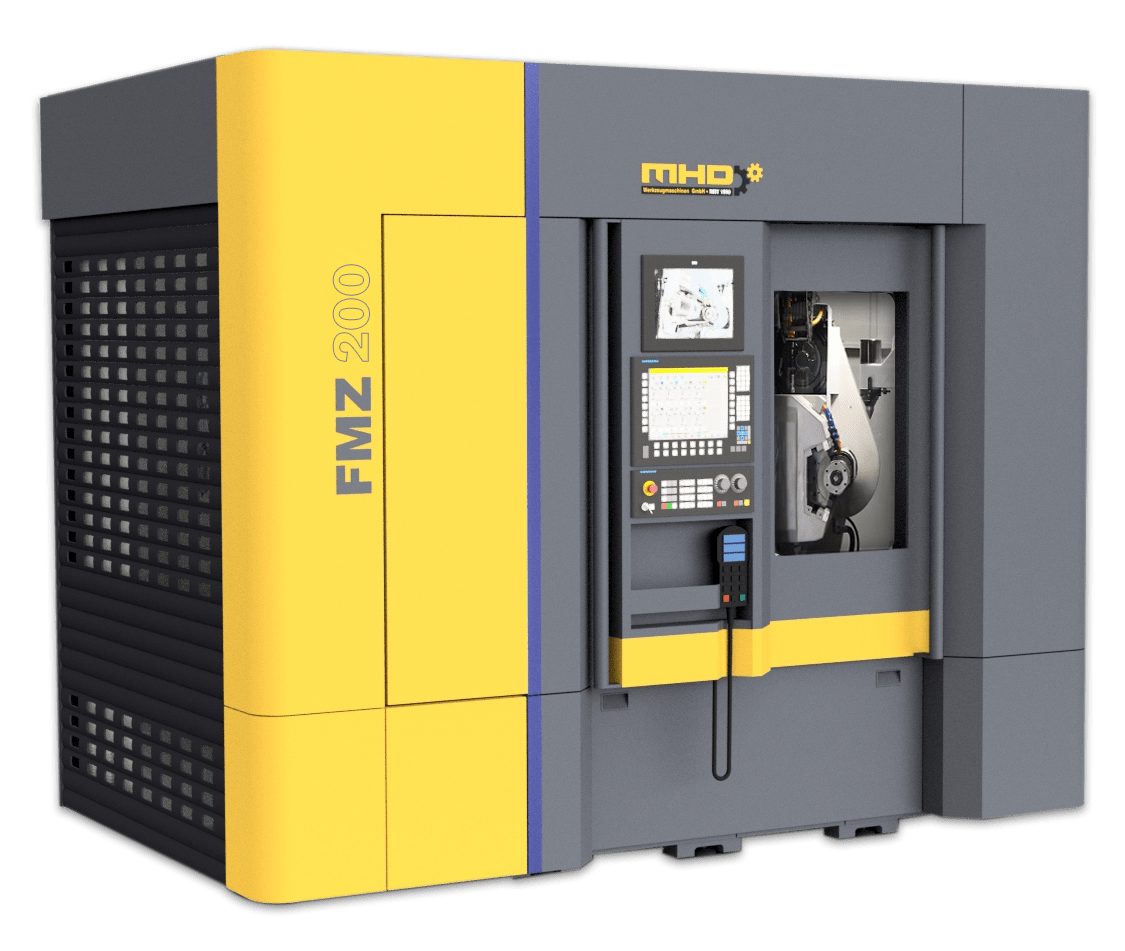

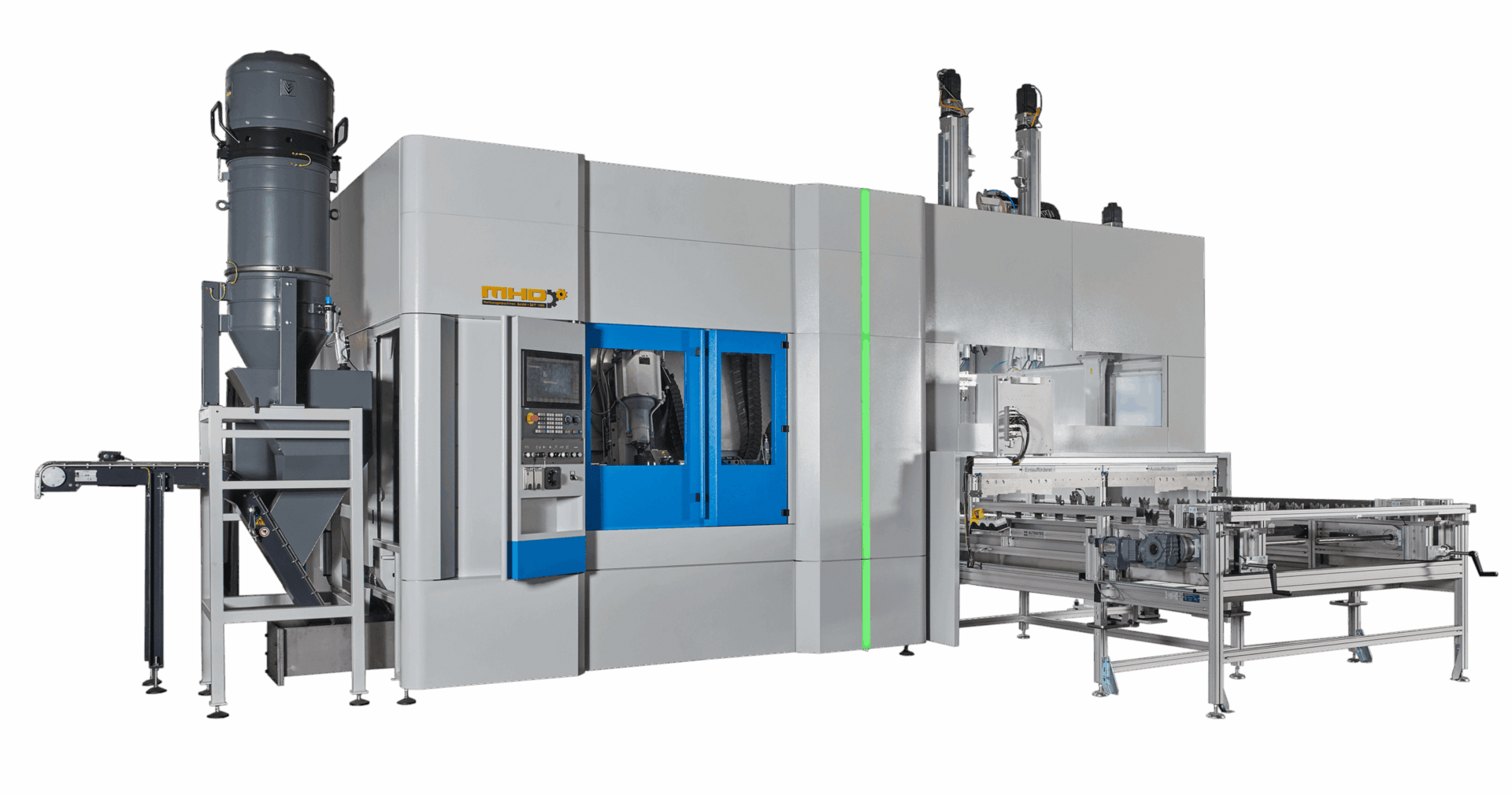

FMZ 200 Gear hobbing machine
The compact gear hobbing machine from MHD Werkzeugmaschinen for the machining of small and mid-sized series.
Our high-performance gear hobbing machine offers the latest technology packed into a small space for the production of cylindrical gears with straight or helical toothing.
The machine is designed for frequent setups and offers an easily accessible workspace. In addition, our innovative operator dialogue contributes to a well-structured user interface.
Gear hobbing machine for cylindrical gears of 200 mm in diameter
Technical data:
Max. workpiece diameter | 200 | mm |
Nominal module 4.5 mm | 4,5 | mm |
Hobbing cutter speed | 1500 | U/min |
Table speed | 230 | U/min |
Max. cutter diameter | 180 | mm |
TECHNICAL DATA FMZ 200 DOWNLOAD
Overview:
- Highly productive machining due to compact design with short travels
- Hobbing head with backlash-free direct drive
- Table with backlash-free direct drive via torque motor
- Innovative user interface with 19″ touchscreen
- Ergonomic design, flexible and quickly covertible
FMZ 350
FMZ 350 Gear hobbing machine
Compact, innovative and flexible This universal gear hobbing machine from MHD Werkzeugmaschinen is designed for machining cylindrical gears of up to 350 mm in diameter in high quantities. Our compact gear hobbing machine offers state-of-the-art technology packed into a small space
Backlash-free drives at the table and hobbing head offer maximum precision during gear cutting. Our machine concept is enhanced by the intuitive user interface with a 19″ touchscreen.
Gear hobbing machine for cylindrical gears up to 350 mm in diameter
Technical data:
Max. workpiece diameter | 350 | mm |
Nominal module | 7 | mm |
Hobbing spindle speed | 1000 | U/min |
Table speed | 125 | U/min |
Axial travel | 350 | mm |
TECHNICAL DATA FMZ 350 DOWNLOAD
Overview:
- Highly productive machining due to compact design with short travels
- Stable cast assemblies with excellent cushioning properties
- Hobbing head with backlash-free direct drive
- Table with backlash-free direct drive via torque motor
- Short setup times due to ergonomic machine design
- Maintenance-friendly
- Intuitive user interface with 19″ touchscreen
- Various automation configurations
FMZ 500
FMZ 500 Gear hobbing machine – a universal machine
The universal gear hobbing machine from MHD Werkzeugmaschinen is designed for machining cylindrical gears of up to 500 mm in diameter in high quantities. Our compact gear hobbing machine offers state-of-the-art technology packed into a small space.
The use of carbide tools in combination with powerful drive technology enables uncompromisingly low unit costs in production. The FMZ 500 is a versatile gear hobbing machine in a compact design and is characterised by flexibility and precision – tailor-made for contract manufacturers.
Gear hobbing machine for cylindrical gears up to 500 mm in diameter
Technical data:
Workpiece diameter | 500 | mm |
Nominal module | 10 | mm |
Hobbing cutter speed | 1000 | U/min |
Table speed | 125 | U/min |
Cutter diameter | 190 | mm |
Axial travel | 350 | mm |
TECHNICAL DATA FMZ 500 DOWNLOAD
Overview:
- Highly productive machining due to compact design with short travels
- Fast setup times, ergonomic machine design
- Hobbing head with backlash-free direct drive
- Intuitive user interface with 19″ touchscreen
- Various automation configurations
FMZ 90H

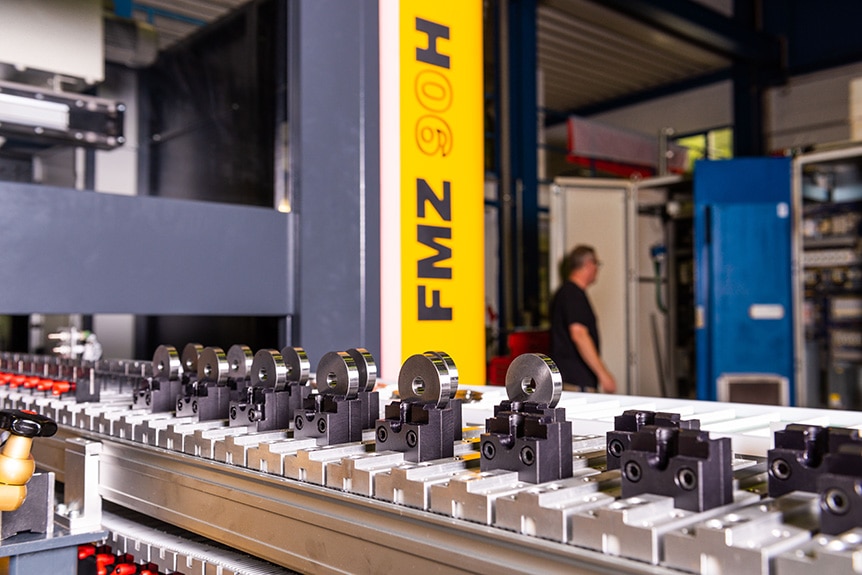

FMZ 90H – horizontal gear hobbing machine for shafts up to 90 mm in diameter
The FMZ 90H horizontal gear hobbing machine – a robust gear cutting machine from MHD Werkzeugmaschinen for machining shafts of up to 90 mm in diameter.
Our horizontal gear hobbing machine offers cutting-edge technology for the efficient production of shaft parts with cylindrical straight or helical toothing.

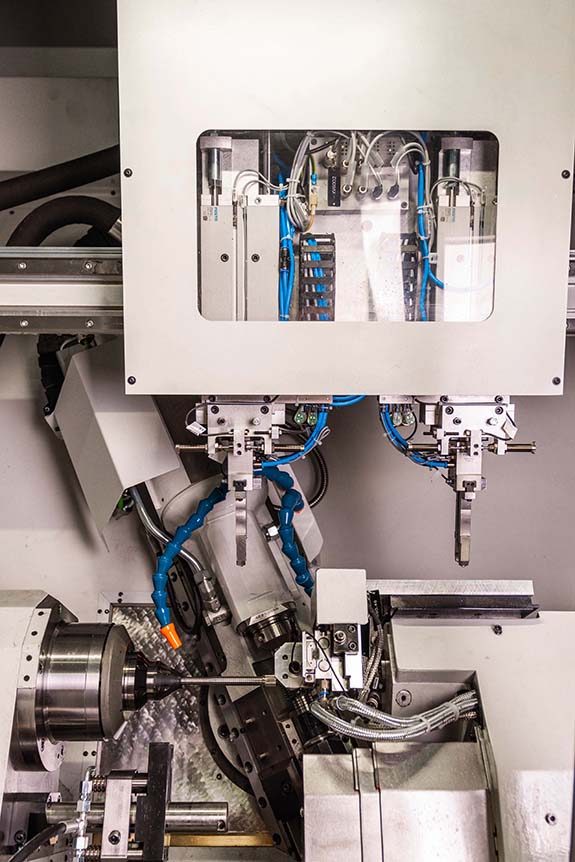

The machine is designed for frequent setups and has an easily accessible workspace. The BG3 hobbing head is available in two speed ranges, allowing users to choose between increased power transmission for high hobbing feeds increased speeds for carbide of MC 90 cutters
MHD Werkzeugmaschinen has developed a clear and convenient user interface with a large-format touchscreen. The operating dialogue is divided into different levels to be selected by horizontal and vertical softkeys. A maximum of two screens per level are called up for data input, which is limited to a few parameters required for tool, workpiece and machining. Operators of all machine generations quickly find their way around the menu and can work safely and reliably with gear cutting machines from MHD Werkzeugmaschinen after just a few days of familiarisation.
Other designs of FMZ 90H
FMZ 90H’s modular machine concept allows us to offer the gear hobbing machine also as a rotor gear hobbing machine or worm gear hobbing machine.
Technical data:
Max. workpiece diameter | 90/100 | mm |
Nominal module | 3 | mm |
Hobbing spindle speed, standard version | 6000 | U/min |
Table speed, standard version | 1500 | U/min |
Max. cutter diameter | 65 | mm |
Axial travel | 100 | mm |
TECHNICAL DATA FMZ 90H DOWNLOAD
FMZ 300H

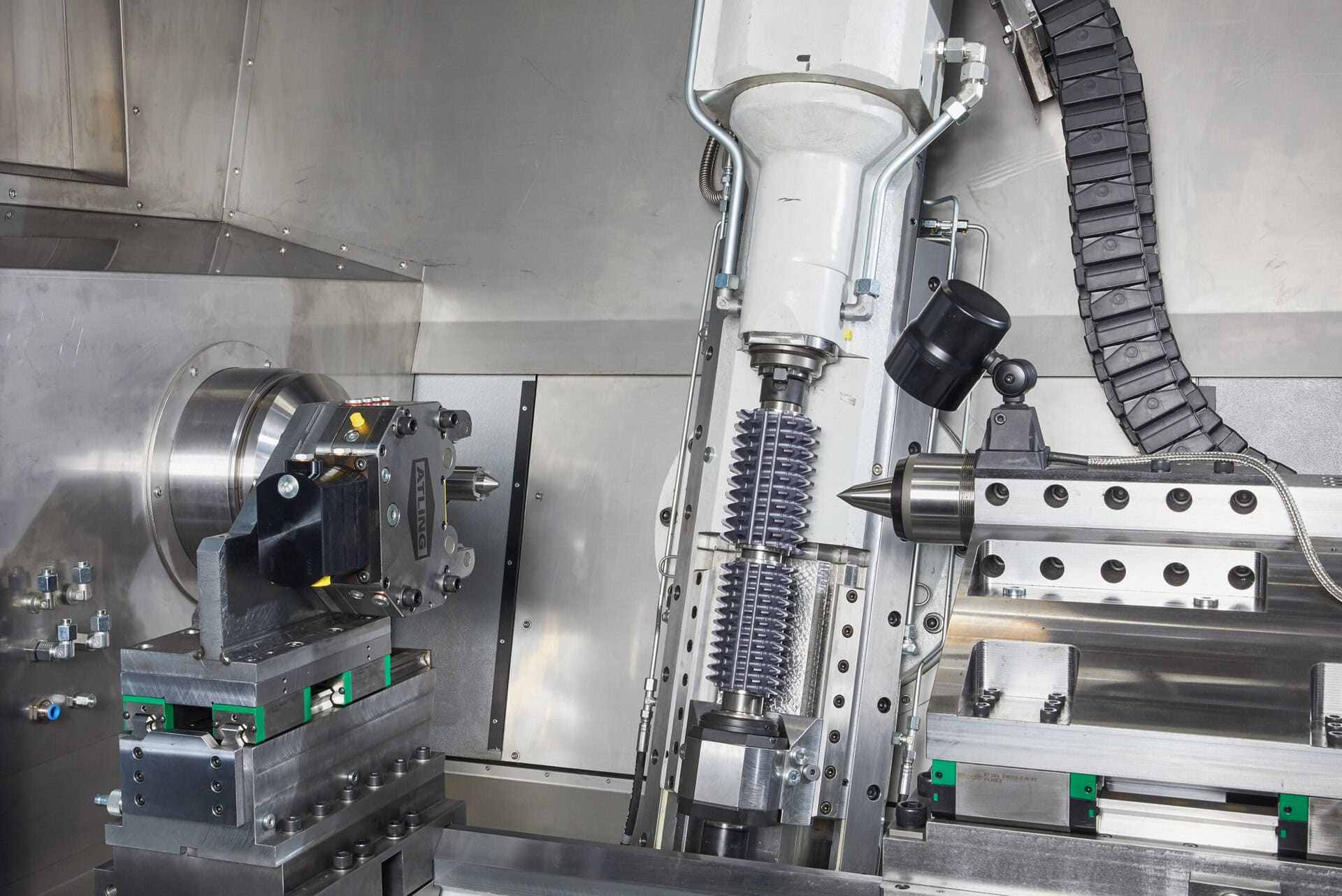

FMZ 300H – horizontal gear hobbing machine for shafts up to 300 mm in diameter
The FMZ 300H horizontal gear hobbing machine – a robust gear cutting machine from MHD Werkzeugmaschinen for machining shafts up to 300 mm in diameter.
Our horizontal gear hobbing machine offers state-of-the-art technology for the efficient production of shaft parts with cylindricalstraight or helical toothing.
The machine is designed for frequent setups and provides an easily accessible workspace. The BG3 hobbing head is available in two speed ranges, allowing users to select between increased power transmission for high hobbing feeds and increased speeds far carbide or MC 90 cutters
MHD Werkzeugmaschinen has developed a clear and convenient user interface with a large-format touchscreen. The operating dialogue is divided into different levels to be selected by horizontal and vertical softkeys. A maximum of two screens per level are called up for data input, which is limited to a few parameters required for tool, workpiece and machining. Operators of all machine generations quickly find their way around the menu and can work safely and reliably with gear cutting machines from MHD Werkzeugmaschinen after just a few days of familiarisation. arbeiten.
Other designs of FMZ 300H
FMZ 300H’s modular machine concept allows us to offer the gear hobbing machine also as a rotor gear hobbing machine or worm gear hobbing machine.
Technical data:
Max. workpiece diameter | 300 | mm |
Nominal module | 8 | mm |
Cutter speed, standard version | 600 | rpm |
Cutter speed, optional | 1000 | rpm |
Table speed, standard version | 600 | rpm |
Table speed, optionally | 1000 | rpm |
Max. cutter diameter | 190 | mm |
Axial travel | 1200 | mm |
TECHNICAL DATA FMZ 300H DOWNLOAD
Overview:
- Highly productive machining due to powerful direct drives
- Hobbing head with backlash-free direct drive in two speed ranges
- Table with backlash-free direct drive
- Innovative user interface with 19″ touchscreen
- Ergonomic design, flexible and quickly convertible
- Energy-efficient equipment
Minimum workpiece with diameter 35 mm on horizontal hobbing machine FMZ 300H
Power hobbing of shaft part module 8 on horizontal hobbing machine FMZ 300H
