GEAR SHAPING MACHINES
Gear shaping machines for cylindrical workpieces
Gear shaping machines from MHD Werkzeugmaschinen enable the precise and efficient production of internal and external cylindrical gears in the diameter range 160 to 650 mm. The gear shaping process is applied when, due to interfering contours on workpieces, production using the gear hobbing process is impossible.
All gear shaping machines in this series are equipped with a hydrostatic spindle bearing and hydrostatic guides.
The machines’ main assemblies are made of grey cast iron featuring outstanding cushioning characteristics, ideally suited for absorbing any process-induced vibrations.
MHD Werkzeugmaschinen use the latest Sinumerik 840D sl controller generation with digital drive technology. Process monitoring and data export according to Industry 4.0 standards is warranted.
Intuitive operator guidance with clear input screens – the user-friendly operation of our gear shaping machines can be learned within a short time.
SMZ 16
SMZ 16 Gear shaping machine
Flexible and compact shaping machine from MHD Werkzeugmaschinen for the production of internal and external gears on cylindrical workpieces. The machine can effectively and highly accurately cut cylindrical gears in the diameter range from 20 to 160 mm using the gear shaping process; it is therefore suitable for small quantities as well as for the production of large batch sizes.
Thanks to our intuitive operator guidance qualified personnel can operate the SMZ 16 gear shaping machine after only a few days of training. For example, a 19″ touchscreen with well-structured input masks enables fast data entries and facilitates the change from one workpiece to the next. In addition, the adjustable axial slide simplifies workpiece changes and significantly reduces setup times.

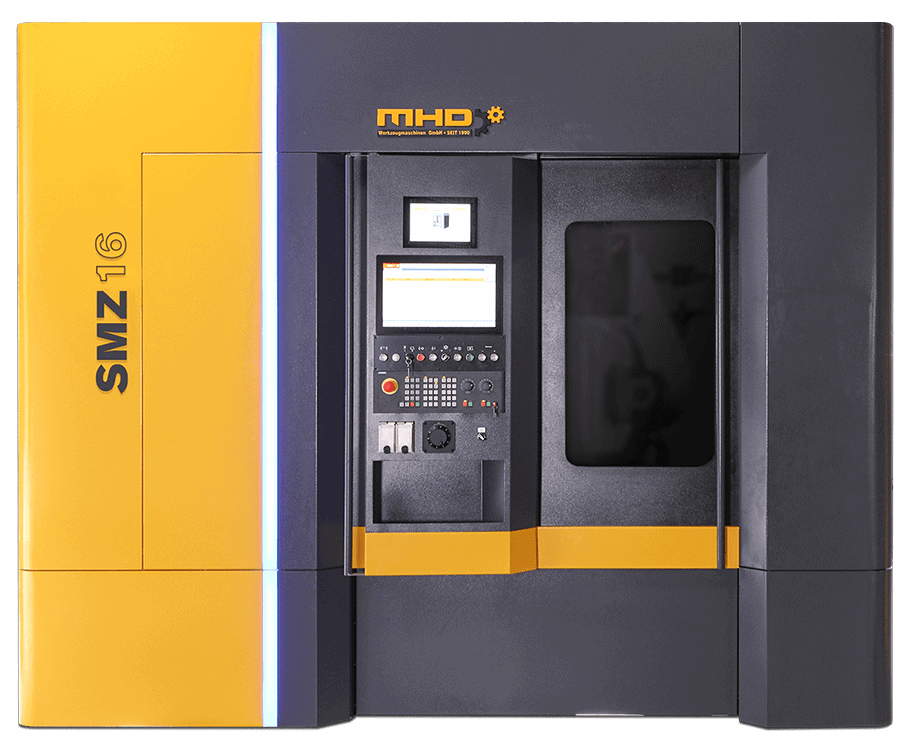

SMZ 16 gear shaping machine for workpieces up to max. 160 mm in diameter
Technical data:
Workpiece diameter | 160 | mm |
Module | 4 | |
Tool diameter | 120 | mm |
Stroke rate of cutter spindle | 50 – 1000 | str/min |
Stroke length | 50 | mm |
TECHNICAL DATA SMZ 16 DOWNLOAD
Overview:
- 4 NC controlled axes
- Sinumerik 840D sl
- 19″ touchscreen and user-friendly operator interface for intuitive operation
- Axial slide (Z-axis)
- Compact design
- Hydrostatic guides
SMZ 32
SMZ 32 Gear shaping machine
Flexible and compact shaping machine from MHD Werkzeugmaschinen for the production of internal and external gears on cylindrical workpieces. The machine can effectively and highly accurately cut cylindrical gears in the diameter range from 60 to 320 mm using the gear shaping process; it is therefore suitable for small quantities as well as for the production of large batch sizes.
Dank unserer intuitive operator guidance qualified personnel can operate the SMZ 32 gear shaping machine after only a few days of training. For example, a 19″ touchscreen with well-structured input masks enables fast data entries and facilitates the change from workpiece to workpiece. In addition, the adjustable axial slide simplifies workpiece changes and significantly reduces setup times.
SMZ 32 gear shaping machine for workpieces up to 320 mm in diameter
Technical data:
Workpiece diameter | 320 | mm |
Module | 6 | |
Tool diameter | 125 | mm |
Stroke rate | 50 – 800 | str/min |
Stroke length | 80 | mm |
TECHNICAL DATA SMZ 32 DOWNLOAD
Overview:
- 4 NC controlled axes
- Sinumerik 840D sl with digital drive technology
- Intuitive dialogue program for user-friendly operation and 19″ touchscreen
- Axial slide (Z-axis)
- Compact design
- Hydrostatic guides
SMZ 50
SMZ 50 Gear shaping machine
Gear shaping machine for the manufacture of internal and external gears on cylindrical workpieces. The machine can effectively and highly precisely cut cylindrical gears up to an outer diameter of 500 mm using the gear shaping process. It is suitable for small quantities as well as for large batches.
Thanks to our intuitive operator guidance qualified personnel can operate the SMZ 50 gear shaping machine after only a few days of training. For example, a 19″ touchscreen with well-structured input masks enables fast data entries and facilitates the change from workpiece to workpiece. In addition, the adjustable axial slide simplifies workpiece changes and significantly reduces setup times.
SMZ 50 gear shaping machine for workpieces up to 500 mm in diameter
Technical data:
Workpiece diameter | 50 | mm |
Module | 8 | |
Tool diameter | 150 | mm |
Stroke rate | 50 – 800 | str/min |
Stroke length | 180 | mm |
TECHNICAL DATA SMZ 50 DOWNLOAD
Überblick:
- 4 NC controlled axes
- Sinumerik 840D sl with digital drive technology
- Intuitive dialogue program for user-friendly operation and 19″ touchscreen
- Axial slide (Z-axis)
- Compact design
- Hydrostatic guides
